GH0128 10A、大電流、PCBマウント端子台コネクタ電子部品電子ホビーキット

製品説明： GH0126PCBマウント端子台コネクタ電子部品電子ホビーキット この2ピン/ 3ピンのワイヤからボードへのコネクタは、ワイヤをボードに接続するために広く使用されています.電源やモーターなどの他の周辺機器をボードに接続するために使用できます. 2つの取り付けピン間の距離は標準の5.0mmの倍数であるため、このコネクタは汎用PCBに簡単に取り付けることができます.このコネクタは、最大10Aの電流で安全に使用できます. プロパティの詳細： 1.材料： 1.1ハウジング：LCP UL94 V-0 1.2端子：銅合金 2.メッキ：端子：マットイン 3.電気的性能： 3.1定格電圧：300V（AC / DC） 3.2定格電流：10A 3.3絶縁抵抗：100MΩ以上 3.4誘電耐電圧：500V AC R.M.S / 1m 4.環境特性 4.1保管温度範囲：-10 ℃〜+ 50 ℃半年 4.2動作温度範囲：-40 ℃〜+ 105 ℃ 5.RoHS準拠 機能と利点： 低プロファイルは、オンボードシャドウイングを最小限に抑えます 彼のコネクタは最大10Aの電流で安全に使用できます. 2〜24極構成で利用可能 応用： 電源コネクタ プリント回路基板（PCB） 証明書： GHGMでは品質管理が最優先事項です. 管理システム：IATF 16949：2106、ISO 9001、ISO 14001、GB / T29490 生産品質管理：UL、VDE、REACH、RoHS、IEC、CQC 発明と特許：米国、ドイツ、日本、中国 梱包と配送： ご注文が配送中に破損しないように、最適で安全な梱包材を選択します. Tape & real、PEバッグ、チューブ、トレイなど、さまざまな梱包方法がさまざまな製品に適用されます. これらの取引条件は、EXW、FOB、CFR、CIFなどで受け入れられます.

製品説明： GH0301 15A、大電流、PCBマウント端子台コネクタ電子部品電子ホビーキット このワイヤーからボードへのコネクターは、ワイヤーをボードに接続するために広く使用されています.電源やモーターなどの他の周辺機器をボードに接続するために使用できます. 2つの取り付けピン間の距離は標準の5.0mmの倍数であるため、このコネクタは汎用PCBに簡単に取り付けることができます.このコネクタは、最大15Aの電流に対して安全に使用できます. プロパティの詳細： 1.材料： 1.1ハウジング：LCP UL94 V-0 1.2端子：銅合金 2.メッキ：端子：マットイン 3.電気的性能： 3.1定格電圧：300V（AC / DC） 3.2定格電流：15A 3.3絶縁抵抗：100MΩ以上 3.4誘電耐電圧：500V AC R.M.S / 1m 4.環境特性 4.1保管温度範囲：-10 ℃〜+ 50 ℃半年 4.2動作温度範囲：-40 ℃〜+ 105 ℃ 5.RoHS準拠 機能と利点： 低プロファイルは、オンボードシャドウイングを最小限に抑えます 彼のコネクタは最大15Aの電流で安全に使用できます. 2〜24極構成で利用可能 応用： 電源コネクタ プリント回路基板（PCB） 証明書： GHGMでは品質管理が最優先事項です. 管理システム：IATF 16949：2106、ISO 9001、ISO 14001、GB / T29490 生産品質管理：UL、VDE、REACH、RoHS、IEC、CQC 発明と特許：米国、ドイツ、日本、中国 梱包と配送： ご注文が配送中に破損しないように、最適で安全な梱包材を選択します. Tape & real、PEバッグ、チューブ、トレイなど、さまざまな梱包方法がさまざまな製品に適用されます. これらの取引条件は、EXW、FOB、CFR、CIFなどで受け入れられます.

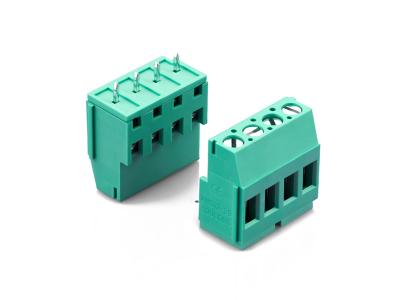

Product Description:GH0129 20A, high current, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby KitThis wiree to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 5.0mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 20A.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowinghis connector can be used safely for current of up to 20A.Available in 2-24 pole configurationsApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH135T 20A, high current, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby KitThis wiree to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 5.0mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 20A.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 57A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowinghis connector can be used safely for current of up to 20A.Available in 2-24 pole configurationsApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH2EDGK & GH2EDGVC 15A, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby KitThis wiree to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 5.0mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 15A.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 15A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowinghis connector can be used safely for current of up to 15A.Available in 2-24 pole configurationsApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

製品説明： J0003金属LEDライトコネクタ、銅LED電球ライトコネクタ、銅合金オスコネクタとの嵌合J1001-J1007 プロパティの詳細： 1.材料：銅合金 2.メッキ：はんだテールarに80u "以上のスズ 3.電気的性能： 3.1定格電圧：275V（AC / DC） 3.2定格電流：1A 3.3絶縁抵抗：100MΩ以上 3.4誘電耐電圧：500V AC R.M.S / 1m 3.5接触抵抗：最大60mΩ. （イニシャル） 最大100Ω （寿命試験後） 4.RoHS準拠 5.環境特性 5.1保管温度範囲：-10 ℃〜+ 50 ℃半年 5.2動作温度範囲：-40 ℃〜+ 105 ℃ 機能と利点： 低プロファイルは、オンボードシャドウイングを最小限に抑えます Availalbeプリント回路基板（PCB）、厚さ：1.0-1.2mm SMTはんだ付けプロセスに完全に統合するためのテープアンドリールパッケージでの納品 自動化されたピックアンドプレースアセンブリによる大幅な節約の可能性 応用： LED電球 LEDストリップライトコネクタ プリント回路基板（PCB） 証明書： GHGMでは品質管理が最優先事項です. 管理システム：IATF 16949：2106、ISO 9001、ISO 14001、GB / T29490 生産品質管理：UL、VDE、REACH、RoHS、IEC、CQC 発明と特許：米国、ドイツ、日本、中国 梱包と配送： ご注文が配送中に破損しないように、最適で安全な梱包材を選択します. Tape & real、PEバッグ、チューブ、トレイなど、さまざまな梱包方法がさまざまな製品に適用されます. これらの取引条件は、EXW、FOB、CFR、CIFなどで受け入れられます.

Product Description:GH135T 20A, high current, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby KitThis wiree to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 5.0mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 20A.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 57A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowinghis connector can be used safely for current of up to 20A.Available in 2-24 pole configurationsApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH8003&GH8004 Pitch 0.8mm, floating board to board connector, multiple board connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Gold flash3.   Electrical performance:        3.1    Rated: Signal Pin, 50V/0.5A, Power Pin, 200V/50A        3.2    Insulation Resistance:  Signal Pin, 100MΩ min(Min)                                                                Power Pin, 1000MΩ min(Min)        3.3    Dielectric withstanding voltage:                                                     Signal Pin, 150VAC R.M.S/1m                                                    Power Pin, 600VAC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:As many devices has evolved to become more compact and high-functioning. The “floating connector” has been contributing to reduce the stress which occurs to connecting parts when screwing fastening to the PCB, as well as when having multiple connectors mounted on one single PCB.GHGM floating connector series has started from 0.5mm pitch, then it has progressed to 0.635mm, 0.8mm, and 0.4mm pitch connector.Application:Floating connectors have been used in wide range of applications from car infotainment systems for automotive applications as well as medical, manufacturing, regardless of industrial or consumer applications. Abundant options for number of pins and height variations make it possible for the floating connector to be flexible to use regardless of application.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
