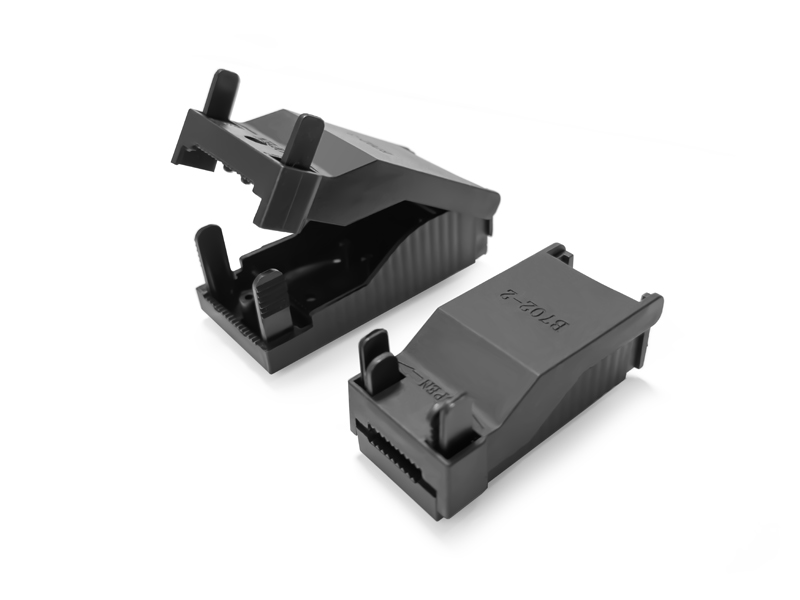

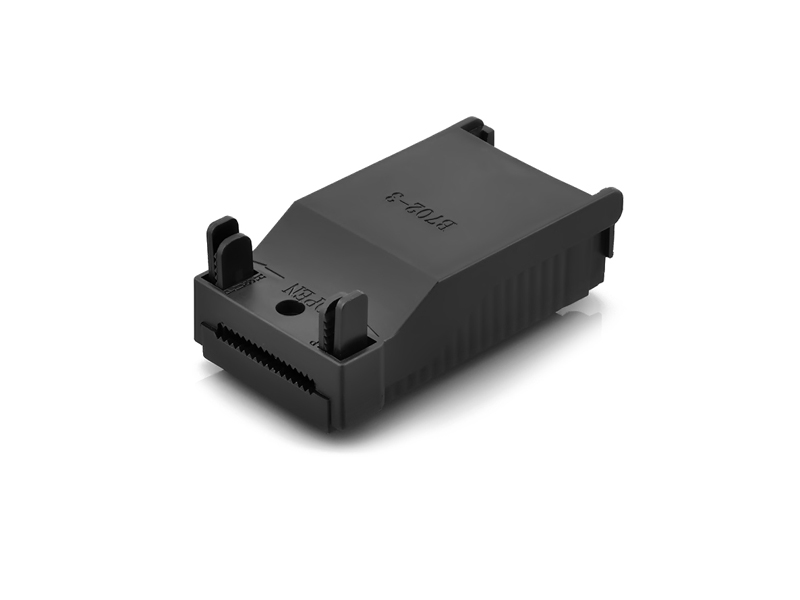

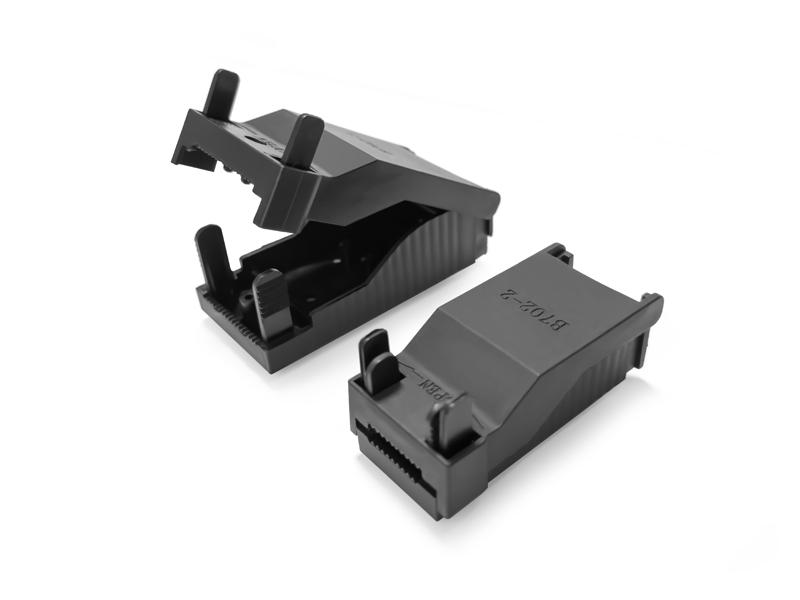

GH0702、コネクタボックス、GH09232-5ピンとの嵌合

製品説明： GH5903ミニGH09232-5ピン、LED照明端子台、ストリップコネクタ、UL VDE、プッシュワイヤコネクタ プロパティの詳細： 1.材料： 1.1ハウジング：LCP UL94 V-0 1.2端子：銅合金 2.メッキ：端子：マットイン 3.電気的性能： 3.1定格電圧：300V（AC / DC） 3.2定格電流：9A 3.3絶縁抵抗：100MΩ以上 3.4誘電耐電圧：500V AC R.M.S / 1m 4.環境特性 4.1保管温度範囲：-10 ℃〜+ 50 ℃半年 4.2動作温度範囲：-40 ℃〜+ 105 ℃ 5.RoHS準拠 機能と利点： 電源用端子台は、ランプなどの接続に使用します.照明や家電製品などに適しており、0.75〜2.5mm2の一本線、多本線、細線を接続できます.さまざまな極性パッチとクランプが利用可能です 各種ボトムタイプ：T / J /平底. 応用： 照明、家電製品等、 証明書： GHGMでは品質管理が最優先事項です. 管理システム：IATF 16949：2106、ISO 9001、ISO 14001、GB / T29490 生産品質管理：UL、VDE、REACH、RoHS、IEC、CQC 発明と特許：米国、ドイツ、日本、中国 梱包と配送： ご注文が配送中に破損しないように、最適で安全な梱包材を選択します. Tape & real、PEバッグ、チューブ、トレイなど、さまざまな梱包方法がさまざまな製品に適用されます. これらの取引条件は、EXW、FOB、CFR、CIFなどで受け入れられます.

製品説明： GH0923 2-5ピン、LED照明端子台、ストリップコネクタ923、UL VDE、プッシュワイヤコネクタ プロパティの詳細： 1.材料： 1.1ハウジング：LCP UL94 V-0 1.2端子：銅合金 2.メッキ：端子：マットイン 3.電気的性能： 3.1定格電圧：300V（AC / DC） 3.2定格電流：16A 3.3絶縁抵抗：100MΩ以上 3.4誘電耐電圧：500V AC R.M.S / 1m 4.環境特性 4.1保管温度範囲：-10 ℃〜+ 50 ℃半年 4.2動作温度範囲：-40 ℃〜+ 105 ℃ 5.RoHS準拠 機能と利点： 電源用端子台は、ランプなどの接続に使用します.照明や家電製品などに適しており、0.75〜2.5mm2の一本線、多本線、細線を接続できます.さまざまな極性パッチとクランプが利用可能です 各種ボトムタイプ：T / J /平底. 応用： 照明、家電製品等、 証明書： GHGMでは品質管理が最優先事項です. 管理システム：IATF 16949：2106、ISO 9001、ISO 14001、GB / T29490 生産品質管理：UL、VDE、REACH、RoHS、IEC、CQC 発明と特許：米国、ドイツ、日本、中国 梱包と配送： ご注文が配送中に破損しないように、最適で安全な梱包材を選択します. Tape & real、PEバッグ、チューブ、トレイなど、さまざまな梱包方法がさまざまな製品に適用されます. これらの取引条件は、EXW、FOB、CFR、CIFなどで受け入れられます.

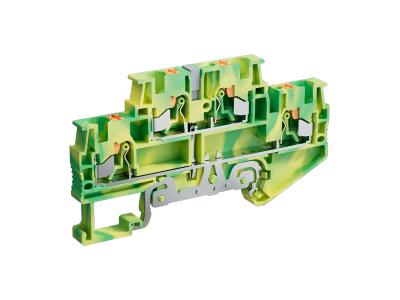

Product Description:GHPT025-TW Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：60.5*35.3*5.2mm2.   Wiring capacity：0.2-4 mm²(solid wire) / 0.2-2.5 mm²(Stranded wire), 26-12 AWG3.   Voltage/Current：IEC: 800V/24A, UL:600V/20A4.   Wiring quantity：35.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH135T 20A, high current, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby KitThis wiree to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 5.0mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 20A.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 57A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowinghis connector can be used safely for current of up to 20A.Available in 2-24 pole configurationsApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GHPT10 Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：67.7*49.5*10.2mm2.   Wiring capacity：0.5-16mm²(solid wire) / 0.5-10mm²(Stranded wire), 20-6AWG3.   Voltage/Current：IEC: 1000V/57A, UL:600V/60A4.   Wiring quantity：25.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

製品説明： G15 M2028、2列、直角、SMD Ledライトコネクタ、ストレートスタイル、インテリジェント照明コネクタ、ピッチ2.0mm、2-6ピン、メス嵌合コネクタ プロパティの詳細： 1.材料： 1.1ハウジング：LCP UL94 V-0 1.2端子：銅合金 2.メッキ：端子：マットイン 3.電気的性能： 3.1定格電圧：275V（AC / DC） 3.2定格電流：1A 3.3絶縁抵抗：100MΩ以上 3.4誘電耐電圧：500V AC / 1m 3.5接触抵抗：最大60mΩ. （イニシャル） 最大100Ω （寿命試験後） 4.環境特性 4.1保管温度範囲：-10 ℃〜+ 50 ℃半年 4.2動作温度範囲：-40 ℃〜+ 105 ℃ 5.RoHS準拠 機能と利点： 低プロファイルは、オンボードシャドウイングを最小限に抑えます さまざまな長さの端子台をポールを失うことなく取り付けることができるため、バリエーションの数を減らし、製造コストを削減できます. 2 – 6極構成で利用可能 SMTはんだ付けプロセスに完全に統合するためのテープアンドリールパッケージでの納品 自動化されたピックアンドプレースアセンブリによる大幅な節約の可能性 応用： LED電球 インテリジェント照明コネクタ SmartLightingコネクタ 利用可能：Tuya、Xiaomi、Ayla、Homekitプラットフォーム 証明書： GHGMでは品質管理が最優先事項です. 管理システム：IATF 16949：2106、ISO 9001、ISO 14001、GB / T29490 生産品質管理：UL、VDE、REACH、RoHS、IEC、CQC 発明と特許：米国、ドイツ、日本、中国 梱包と配送： ご注文が配送中に破損しないように、最適で安全な梱包材を選択します. Tape & real、PEバッグ、チューブ、トレイなど、さまざまな梱包方法がさまざまな製品に適用されます. これらの取引条件は、EXW、FOB、CFR、CIFなどで受け入れられます.

Product Description:GHPT025-TW-PE Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：60.5*35.3*5.2mm2.   Wiring capacity：0.2-4 mm²(solid wire) / 0.2-2.5 mm²(Stranded wire), 26-12 AWG3.   Voltage/Current：4.   Wiring quantity：35.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0223, lighting connector, push in connector, lever connectors for building wiringThe GHGM Lever Connector is an excellent choice for joining and insulating 2 wire. These Lever connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 12-13mm        3.6    Cross section: 12~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
