GH0221、照明コネクタ、プッシュインコネクタ、ビル配線用レバーコネクタ

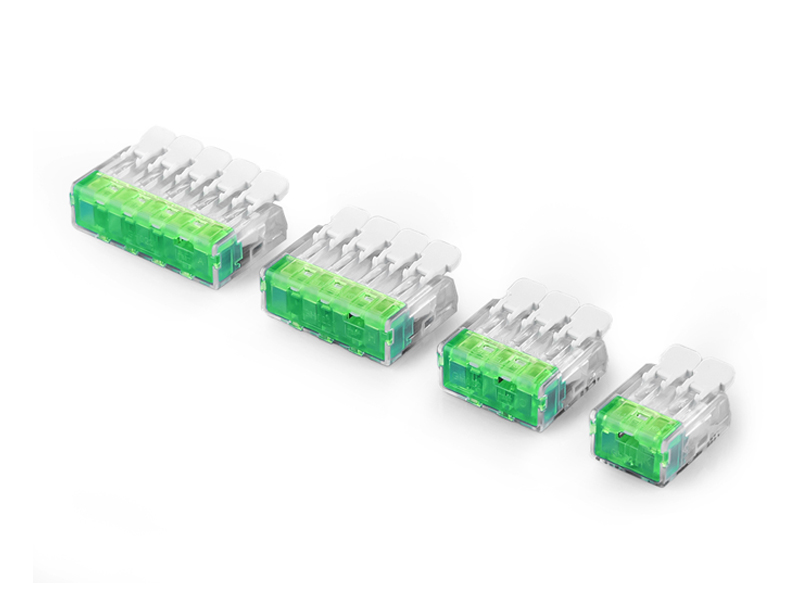

Product Description:GH0221A, lighting connector, push in connector, lever connectors for building wiringThe GHGM Lever Connector is an excellent choice for joining and insulating 2, 3, 4, 6 or 8 wires. These Lever connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 30A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 14-16mm        3.6    Cross section: 10~20AWG4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 3, 5 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0222, lighting connector, push in connector, lever connectors for building wiringThe GHGM Lever Connector is an excellent choice for joining and insulating 2, 4, 6 wire. These Lever connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 12-13mm        3.6    Cross section: 12~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 4, 6 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

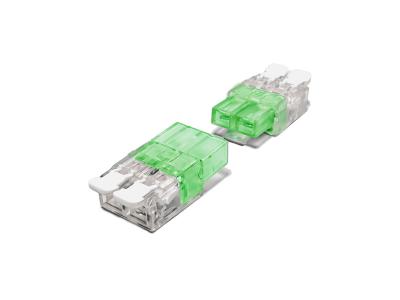

Product Description:GH0223, lighting connector, push in connector, lever connectors for building wiringThe GHGM Lever Connector is an excellent choice for joining and insulating 2 wire. These Lever connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 12-13mm        3.6    Cross section: 12~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH8003&GH8004 Pitch 0.8mm, floating board to board connector, multiple board connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Gold flash3.   Electrical performance:        3.1    Rated: Signal Pin, 50V/0.5A, Power Pin, 200V/50A        3.2    Insulation Resistance:  Signal Pin, 100MΩ min(Min)                                                                Power Pin, 1000MΩ min(Min)        3.3    Dielectric withstanding voltage:                                                     Signal Pin, 150VAC R.M.S/1m                                                    Power Pin, 600VAC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:As many devices has evolved to become more compact and high-functioning. The “floating connector” has been contributing to reduce the stress which occurs to connecting parts when screwing fastening to the PCB, as well as when having multiple connectors mounted on one single PCB.GHGM floating connector series has started from 0.5mm pitch, then it has progressed to 0.635mm, 0.8mm, and 0.4mm pitch connector.Application:Floating connectors have been used in wide range of applications from car infotainment systems for automotive applications as well as medical, manufacturing, regardless of industrial or consumer applications. Abundant options for number of pins and height variations make it possible for the floating connector to be flexible to use regardless of application.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

製品説明： GH0923 2-5ピン、LED照明端子台、ストリップコネクタ923、UL VDE、プッシュワイヤコネクタ プロパティの詳細： 1.材料： 1.1ハウジング：LCP UL94 V-0 1.2端子：銅合金 2.メッキ：端子：マットイン 3.電気的性能： 3.1定格電圧：300V（AC / DC） 3.2定格電流：16A 3.3絶縁抵抗：100MΩ以上 3.4誘電耐電圧：500V AC R.M.S / 1m 4.環境特性 4.1保管温度範囲：-10 ℃〜+ 50 ℃半年 4.2動作温度範囲：-40 ℃〜+ 105 ℃ 5.RoHS準拠 機能と利点： 電源用端子台は、ランプなどの接続に使用します.照明や家電製品などに適しており、0.75〜2.5mm2の一本線、多本線、細線を接続できます.さまざまな極性パッチとクランプが利用可能です 各種ボトムタイプ：T / J /平底. 応用： 照明、家電製品等、 証明書： GHGMでは品質管理が最優先事項です. 管理システム：IATF 16949：2106、ISO 9001、ISO 14001、GB / T29490 生産品質管理：UL、VDE、REACH、RoHS、IEC、CQC 発明と特許：米国、ドイツ、日本、中国 梱包と配送： ご注文が配送中に破損しないように、最適で安全な梱包材を選択します. Tape & real、PEバッグ、チューブ、トレイなど、さまざまな梱包方法がさまざまな製品に適用されます. これらの取引条件は、EXW、FOB、CFR、CIFなどで受け入れられます.

製品説明： M5009オスコネクタ、2ピンニードルコネクタアダプタRGBLEDストリップライトテープライト用オスダブルインサート プロパティの詳細： 1.材料： 1.1ハウジング：LCP UL94 V-0 1.2端子：銅合金 2.メッキ：端子：ニッケル50u "分アンダーメッキ はんだテールarにスズ80u "分 3.電気的性能： 3.1定格電圧：275V（AC / DC） 3.2定格電流：1A 3.3絶縁抵抗：100MΩ以上 3.4誘電耐電圧：500V AC R.M.S / 1m 3.5接触抵抗：最大60mΩ. （イニシャル） 最大100Ω （寿命試験後） 4.RoHS準拠 5.環境特性 5.1保管温度範囲：-10 ℃〜+ 50 ℃半年 5.2動作温度範囲：-40 ℃〜+ 105 ℃ 機能と利点： 低プロファイルは、オンボードシャドウイングを最小限に抑えます さまざまな長さの端子台をポールを失うことなく取り付けることができるため、バリエーションの数を減らし、製造コストを削減できます. SMTはんだ付けプロセスに完全に統合するためのテープアンドリールパッケージでの納品 自動化されたピックアンドプレースアセンブリによる大幅な節約の可能性 応用： LED電球 LEDストリップライトコネクタ プリント回路基板（PCB） 証明書： GHGMでは品質管理が最優先事項です. 管理システム：IATF 16949：2106、ISO 9001、ISO 14001、GB / T29490 生産品質管理：UL、VDE、REACH、RoHS、IEC、CQC 発明と特許：米国、ドイツ、日本、中国 梱包と配送： ご注文が配送中に破損しないように、最適で安全な梱包材を選択します. Tape & real、PEバッグ、チューブ、トレイなど、さまざまな梱包方法がさまざまな製品に適用されます. これらの取引条件は、EXW、FOB、CFR、CIFなどで受け入れられます.

製品説明： GH5060、LEDライトコネクタ、ピッチ3.8mm、1〜3ピン、サイドエントリコネクタ、2060の交換 プロパティの詳細： 1.材料： 1.1ハウジング：LCP UL94 V-0 1.2端子：銅合金 2.メッキ：端子：マットイン 3.電気的性能： 3.1定格電圧：300V（AC / DC） 3.2定格電流：9A 3.3絶縁抵抗：100MΩ以上 3.4誘電耐電圧：500V AC R.M.S / 1m 3.5ストリップ長さ：7〜8mm 3.6断面積：18AWG（Sol & Str）〜20AWG（Str） 4.環境特性 4.1保管温度範囲：-10 ℃〜+ 50 ℃半年 4.2動作温度範囲：-40 ℃〜+ 105 ℃ 5.RoHS準拠 機能と利点： 低プロファイルは、オンボードシャドウイングを最小限に抑えます さまざまな長さの端子台をポールを失うことなく取り付けることができるため、バリエーションの数を減らし、製造コストを削減できます. 1 – 3極構成で利用可能 SMTはんだ付けプロセスに完全に統合するためのテープアンドリールパッケージでの納品 自動化されたピックアンドプレースアセンブリによる大幅な節約の可能性 応用： LED電球 LEDストリップライトコネクタ プリント回路基板（PCB） 証明書： GHGMでは品質管理が最優先事項です. 管理システム：IATF 16949：2106、ISO 9001、ISO 14001、GB / T29490 生産品質管理：UL、VDE、REACH、RoHS、IEC、CQC 発明と特許：米国、ドイツ、日本、中国 梱包と配送： ご注文が配送中に破損しないように、最適で安全な梱包材を選択します. Tape & real、PEバッグ、チューブ、トレイなど、さまざまな梱包方法がさまざまな製品に適用されます. これらの取引条件は、EXW、FOB、CFR、CIFなどで受け入れられます.

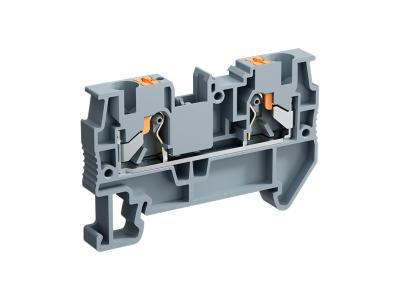

Product Description:GHPT025-QU-PE Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：72.4*35.3*5.2mm2.   Wiring capacity：0.2-4 mm²(solid wire) / 0.2-2.5 mm²(Stranded wire), 26-12 AWG3.   Voltage/Current：4.   Wiring quantity：45.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
